Thingamajig

Thingamajig is a VR-based experience creation and world building tool. It provides a creative sandbox to prototype and build interactive VR experiences.

Thingamajig is fun and easy to use even without prior experience with 3D graphics or modeling tools. Google Poly and Sketchfab are integrated directly into the application so you don’t have to leave VR to access thousands of 3D models.

The following is an overview of the many features of Thingamajig:

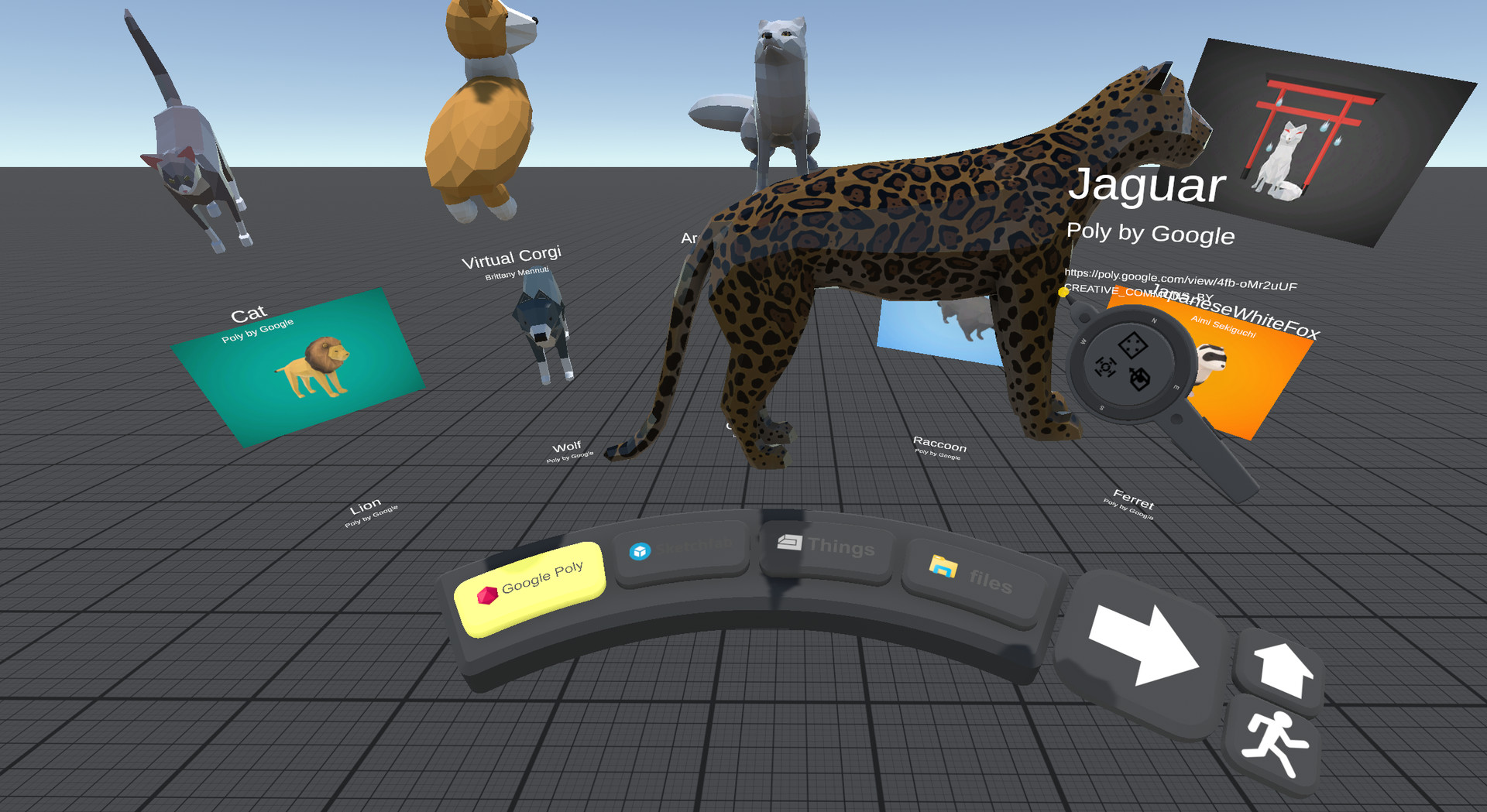

Interactive browsing and searching of Google Poly and Sketchfab inside VR - simply drag an object from search results into your scene without leaving VR.
Create objects from primitive shapes (box, sphere, cylinder, cone, and torus)
Import objects from modeling applications like Google Blocks or Blender (using the popular glTF format)
Position, rotate and scale objects with optional constraints to move along a line or in a plane
Extensive snapping and alignment tools - snap to points, edges and faces as well as a uniform snap grid.
Place custom snap points to build libraries of reusable components that easily snap together in predefined ways.
Jig object for precise alignment and angles
Object management features such as group, ungroup, clone and delete
Split apart imported geometry and regroup into reusable pieces. For example, import a kit of spaceship parts from Google Poly and regroup them into parts that can be used in future creations.
Physics simulation with joints, springs, forces, control over gravity, mass and drag. Make any object dynamic with automatic generation of optimized collision geometry.
Animation system with keyframe animation components as well as procedurally generated and interactive-based animations
Full undo/redo support and auto-saving of scenes
Work at a wide range of scales to for example, construct a city skyscraper and a detailed door handle in the same scene.
A simple wiring system allows connecting objects to define behaviors and animation
Drag-and-drop import of both stereoscopic and mono 360° video (with audio)
Drag-and-drop import of audio with support for 3D spatialized audio
Switch seamlessly between edit and play modes to easily test your experiences as they are created. Many play-mode features are active and dynamic in edit mode making it easy and fun to experiment while world building.
Play mode allows the user to move around the world and interact with dynamic objects, as well as climb, jump or ride on moving objects. In play mode, gizmos and wires disappear.
Kiosk mode allows operating the application in dedicated play-mode. Create an experience and deploy it to one or more PC-based VR “kiosks” to share your experience with other people and/or to develop solutions for training and education. We plan to support deployment to mobile VR in the future.
Scene lobby - access Thingamajig scenes in a centralized location in VR where they are represented as “bubbles”. Each scene bubble shows a 360° view from the last location visited in the scene.
Thing manager - build reusable components called “Things”, which can be used and reused to construct different VR experiences. Things can be browsed and searched allowing the construction of comprehensive libraries of pre-rigged objects to suit various needs.
Many features are implemented by “gizmo” type objects, which typically have sockets where wires can be attached to control parameters.

Examples of gizmo type objects included with Thingamajig:

Spot and omni lights
Camera and monitor objects
Hinge, sliding and ball joints
Springs and force-generating objects
Path and look-at joints
Keyframe animators to animate values, rotations and colors
Transporter - teleport player to specified locations
Proximity sensor - detect player and objects
Particle-based effects like fire and smoke and others
Environment object - sun/sky with time of day or custom gradient and fog
Collision detector - fire a trigger on collision
Birth detector - fire a trigger when an object is spawned
Timer object - to delay or repeat events
Wave and noise generators for procedural animations
Trigger, accumulator and logic operators
Thing emitter and source - spawn objects at specific locations
Anti-gravity gizmo - make floating objects with variable drag
Destroy gizmo - trigger the deletion of an object in play mode
Hand grip and mount gizmos - make objects that stick to the player’s hand or allow the player to “ride” dynamic objects.
Snap socket - define dynamic connection points that can be used as triggers
Vive tracker - control objects in VR with Vive tracker device
Portal camera - create a portal effect by tracking a user’s head in real life (using Vive tracker or controller) and a monitor or projector that becomes a window into the Thingamajig scene.
